Name: Customized Design Pole Mount Cabinet With Battery PDU And Power Distribution
Brand: daxin
Price: 1 USD

Brand Name : daxin

Model Number : DAXIN-7058350

Certification : CE

Place of Origin : SHENZHEN

MOQ : 1pcs

Payment Terms : T/T, MoneyGram, Western Union

Supply Ability : 10000pcs/month

Delivery Time : 15-25 days

Packaging Details : Woodcase/ Paper box

Product name : Ip55 Outdoor Telecom Cabinet

Mount way : Pole mount

Battery Shelf : Yes, can be customzied

Cabinet Lock : Two round lock

Features : Power distribution/ Battery back up. monitory

Cabinet Layout : customized

Design : Custom design based on client's requirments

Dimension : 700mm*580mm*350mm

Contact Now

Customized design Pole Mount Cabinet with Battery PDU and power distribution

Quick Details:

Product Name: IP 55 Outdoor Telecom Cabinet
Protection level: IP55
Cabinet Lock: Round lock
Surface Coating: Outdoor Powder Coating
Applications:
- Telecommunication/Transportation/Renewable Energy/Outdoor Events

Pole Mount Outdoor Telecom Cabinet Technical Parameters:

Model	DAXIN-7058350
Product Name	Outdoor Telecom Cabinet
Manufacturer	Shenzhen Daxin
Cabinet Dimension	W700mmD580mmH350mm
IP Level	IP54/IP55/IP65
Material	1.5mm galvanized steel, single wall
Mounting Way	Pole mount
Cabinet Lock	Round Lock
Access	Door sensor
Battery Shelf	Two shelves
Fan	1 fans on the top
Color	RAL7035
Surface finish	Outdoor Powder Coating
Orther accessory	Battery
	UPS
	PDU
	Fan

Cabinet Environmental Parameter

Environmental parameters				Environmental conditions for use	Transportation environmental conditions	Storage environmental conditions	conform to	notes
type		parameter	unit	Environmental conditions for use	Transportation environmental conditions	Storage environmental conditions	Relevant standards	notes
Weather	external temperature	low temperature	℃	-40	-40	-25	YD/T1058-2000中	"-40℃ Can start at full load,
		high temperature	℃	45	70	55	4.1.1and4.1.2	"+55~+65℃Linear derating20%.
		temperature variation	℃/min	/	1	/	ETS300019-2-2T2.3
	humidity	relative humidity	%	5-90	90(40±2℃)	/	YD/T1058-2000中4.1.3	Short term testing requirements: 0-95%, maximum value of 95%, non condensing
	air pressure	low pressure	Kpa	86	70	70	YD/T1058-2000中4.1.4	Only apply to modules
	air pressure	high atmospheric pressure	Kpa	106	106	106	YD/T1058-2000中4.1.4
altitude			m	≤4000				When the altitude exceeds 2000m, for every 100m increase, the temperature decreases by 0.5 ℃

Electrical characteristics

1 Input characteristics

Serial Number	project		technical requirement	unit	notes
1.1	Input Voltage		90—300	Vac	176-300Vac full load output, 90-175Vac reduced load output
1.2	Input maximum current		57	A
1.3	Input Rated Voltage		220	Vac	Phase voltage
1.4	Input voltage frequency		47—63(The typical value is50/60)	Hz
1.5	Input power factor		≥0.99		Full load working state


2 output characteristic

Serial Number	project		technical requirement	Unit	notes
2.1	Output rated voltage		-54	Vdc	IN220Vac
2.2	Output voltage range		-42— -58	Vdc	Adjustable through monitoring (test condition: no load)
2.3	Output rated current		150	A
2.4	Output Rating Power		8.7	KW
2.5	Output ripple and noise		≤200	mVp-p	The oscilloscope bandwidth should be20MHz,
2.5	Output ripple and noise		≤200	mVp-p	Probe parallel with 10u+104 capacitor
2.6	Startup output delay		3—8	S	IN 220Vac,
2.7	Voltage stabilization accuracy		≤±1%
2.8	Noise index	Broadband clutter	≤100	mV	3.4—150 KHz
		Sound voltage	≤30	mV	150—30 MHz
		Telephone balance weight	≤2	mV
		noise voltage	≤2	mV
2.9	dynamics	overshoot amplitude	△V:≤5	%Vo	25%—50%—25%
2.9	in response to	recovery time	△t:≤500	µS	50%—75%—50%load change
2.1	Unequal current distribution		≤5%		Module parallel 50% -100% rated output
2.1	Unequal current distribution		≤5%		(Functional modules can work in parallel)
2.11	temperature coefficient		±0.02	%/℃
2.12	output efficiency		≥95%		220Vac/Rated load (typical value), high-efficiency module
			≥92%		220Vac/Rated load (typical value), universal module
			≥87%		110VAC/rated load

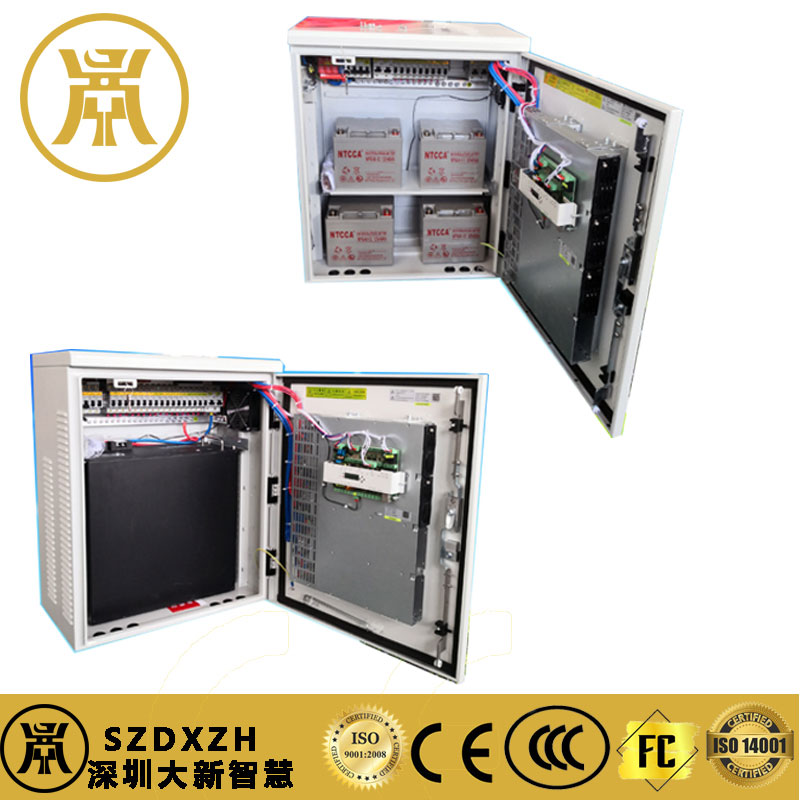

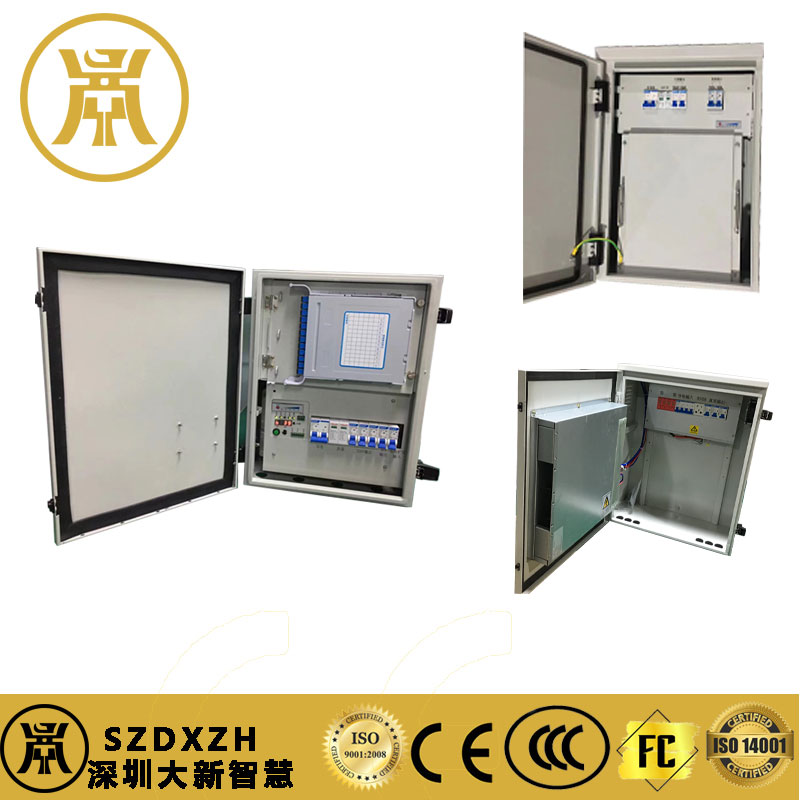

About product real pictures:

About Our factory:
