3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection
Premium Online UPS Technology for Demanding Environments
Our high-frequency rack/tower convertible Online UPS systems deliver true double-conversion power protection for industrial and commercial applications. The 15K-20KVA models feature:
Comprehensive Power Protection:
- Wide Input Voltage Range: 110-300VAC operation
- Multi-Stage Surge Protection: 8kV/20kA rating
- Advanced Battery Management: 3-stage smart charging
- Overload Capacity:
- 110% load: 60 minutes
- 125% load: 10 minutes
- 150% load: 1 minute
Ideal Applications:
✓ Industrial automation systems
✓ Data center power backup
✓ Medical equipment protection
✓ Telecom infrastructure
✓ Financial transaction systems
Key Technical Specifications:
| Parameter | 15KL/15KL |
| Capacity | 15KVA/15KW |
| Input Voltage | 110-300VAC |
| Output Power Factor | 1.0 |
| Efficiency | 95.5% (AC) |
| Noise Level | <60dB |
Advanced Battery Features:
- Configurable battery banks (32-40 units)
- Adjustable charging current (1A-12A)
- Precision charging voltage (±1% accuracy)
- Shared battery group support
Enterprise Management Capabilities:
1. Intelligent Monitoring System:
>Multi-Interface Connectivity:
- RS232/RS485 communication
- SNMP network management
- USB connectivity
Back view:
>Cross-Platform Support:
- Windows (all versions)
- Linux/Mac compatible
2. Operational Advantages:
- DSP-Controlled Power Conversion
- Automatic Voltage Regulation
- Generator Compatibility
- Dual Input Support
- Optional Parallel Operation
3. Environmental Specifications:
- Operating Temperature: 0°C to 40°C
- Humidity Tolerance: <95% non-condensing
- Protection Rating: IP20
- Altitude Limit: <1000m
Physical Configuration:
- Form Factor: 3U rack-mountable (680×438×133mm)
- Weight: 30kg (15KVA model)
- Installation Flexibility: Rack or tower convertible

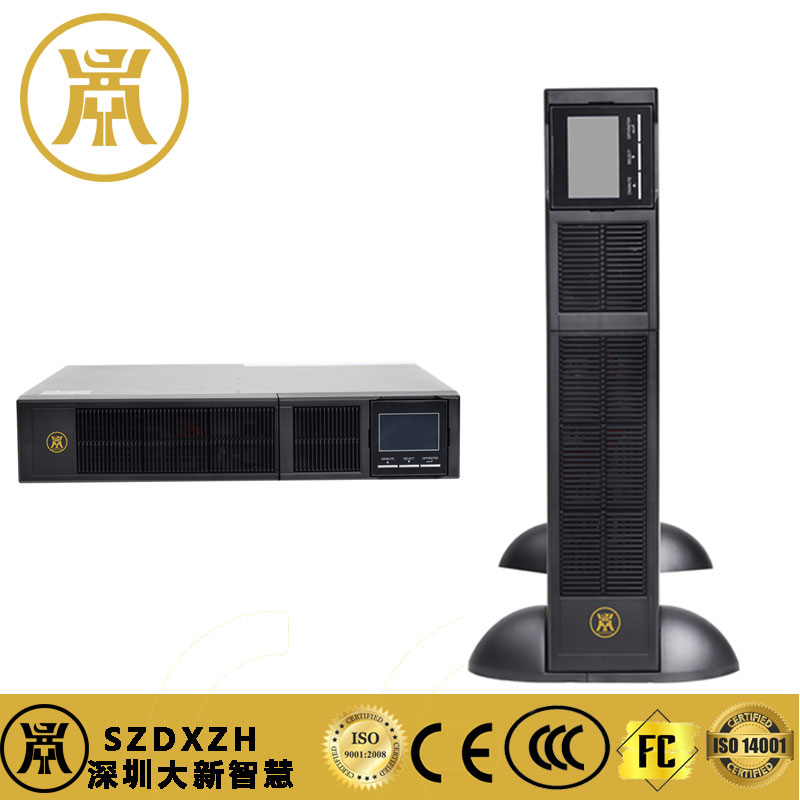

Rack/Tower Convertible:
Why Our Online UPS Stands Out:
- Pure sine wave output for sensitive equipment
- Military-grade protection for harsh environments
- Expandable runtime configurations
- Energy-efficient ECO mode
- Global voltage compatibility (50/60Hz)
This industrial-grade Online UPS solution combines advanced power protection with enterprise management features, ensuring maximum reliability for critical operations. The rack/tower convertible design provides deployment versatility across various infrastructure requirements.
